NOTRAX Insulated Corrugated Switchboard Matting 4X75 Black - 830R0475BL

NOTRAX
(No reviews yet) Write a Review
SKU:
830R0475BL
UPC:
6.63E+11
$2,850.00
Adding to cart… The item has been added

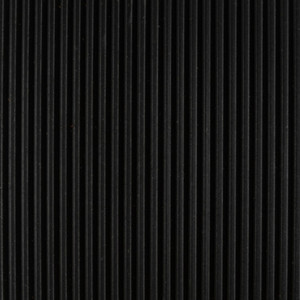

Corrugated Switchboard Matting is a non-conductive floor matting made from a PVC compound, designed to provide insulation for the worker. The mat prevents the worker from being grounded, thereby eliminating the possibility of electrical shock. The corrugated saw-tooth top surface provides increased traction and is easy to sweep clean. Switchboard matting is intended for use in dry environments in front of high voltage boxes, electrical fuse boxes, and transformers.

Product Summary:

  • Electrically Insulative Type 2 PVC compound
  • Insulated matting engineered to protect workers from electric shock
  • Corrugated top surface - Added traction and easy to sweep clean
  • Each square foot of this matting is tested in conformance with ANSI/ASTM D-178 specifications
  • Class 2 Di-electric Strength: 30,000 volts
  • Proof test of 20,000 volts
  • Recommended maximum use voltage: 17,000

Specifications

More Information
Model No 830
Available Colors Black; Black/Yellow
Overall Thickness 1/4
Roll Sizes 2'x 75'; 3'x 75'; 4'x 75'
Custom Lengths 2', 3' and 4' widths (up to 75' long)
Group Ergonomic, Anti-fatigue & Safety Matting
Filter Area Dry Areas
Special Characteristics Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals|Recommended maximum usage: 17.000 Volts
Recommended Use Around electric sub-stations, transformers and switches, electrical panels, engine and generator rooms
Special Remarks It is highly recommended that the mat be replaced every 12 months for optimum performance
Surface Lengthwise Corrugated Rib Pattern
Edges No borders
Usage Intensity Heavy duty
Material Specifications PVC (DOP free)
Process Calendering
Weight Lbs/sqft 1.7
Voltage Class 2
Voltage Maximum 20000
Voltage Recommended 17000
REACH Compliant Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals).
Anti-Fatigue Rating Good
Slip Resistance Rating Best
Wear Resistance Rating Best
