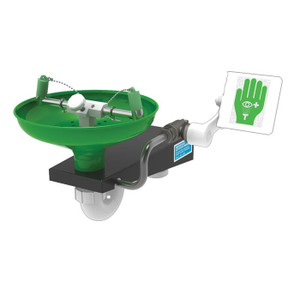

Ideal for laboratories, schools and general light duty indoor use, this wall mounted eye/face wash unit meets ANSI Z358.1 and EN 15154 standards, and supports OSHA requirements. Pop-off dust covers protect the twin spray nozzles from contaminants, and are lifted off by the water jets upon operation via the push plate. Includes an inspection record tag for recording test and service history.
Product Summary:
- Easy-to-clean powder coated stainless steel bowl for excellent corrosion resistance
- Pop-off dust covers protect the twin spray nozzles from contaminants
- Fine mesh strainers and an individual flow controller provide a gentle flow of aerated water and prevent further injury to the eyes
- High-performance quarter-turn ball valves made of 316L stainless steel endure the harshest environments and site conditions
- Includes a universal eye wash sign for enhanced visibility
Specifications
| Model No | L85GS |
|---|---|
| Color | Green |
| UPC | 805042000106 |
| Net Weight, lbs | 7.7 |
| Net Weight, kg | 3.5 |
| Dimensions, Exterior | 11.6" H x 16.9" W x 15.7" D |
| 295mm H x 429mm W x 429mm D | |
| UL Classified to ANSI Z358.1-2014 | Yes |
| Water Inlet Size NPT | 1/2 in (F) |
| Minimum Operating Pressure | 2 bar g, 29 PSI |
| Maximum Operating Pressure | 6 bar g, 87 PSI |
| Water Flow Eye/Face Liters/min | 11.4 |
| Water Flow Eye/Face US Gal/min | 3 |
| Material Specifications | Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. |
| Operating Valve Material | 316L Stainless |
| Eye/Face Wash Bowl Material | Green Powder-Coated Stainless Steel |
| Mounting Type | Wall |
| Activation Method | Push Plate |
| Eye/Face Wash Bowl Interior Dimensions | 10.25" W x 10.25" D |
| 260mm W x 260mm D | |
| Minimum Ambient Temperature, °F | 41 |
| Minimum Ambient Temperature, °C | 5 |
| Maximum Ambient Temperature, °F | 95 |
| Maximum Ambient Temperature, °C | 35 |
Documentation:
Product Datasheet L85GS (1.05 MB)
