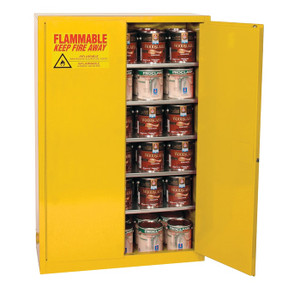

EAGLE 60 Gallon, 5 Shelves, 2 Doors, Self Close, Paint Safety Cabinet,Yellow - YPI4510X

EAGLE
(No reviews yet) Write a Review
SKU:
YPI4510X
UPC:
48441691432
$1,880.00
Adding to cart… The item has been added
Eagle 60 Gallon, self-closing, Paint and Ink Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Product Summary:

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Self-Closing (135° opening)
  • Concealed self-close mechanism provides obstruction-free access to top shelf space
  • Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom

Specifications



More Information
Model No YPI4510X
Color Yellow
Material Specifications 18-Gauge Steel
Door Style Self-close
UPC 048441691432
Dimensions, Exterior 43W x 18Dx 65H
Dimensions, Interior 39.5" W x 14.56" D x 60.5" H (100.3 x 37 x 153.7 cm)
Number of Doors 2
Number of Shelves 5
Lock Yes
Gallon Capacity 60
Liter Capacity 227.12
Replacement Shelf Model No. 29937
Pallet Quantity 1
Shelf Depth 14" (35.6 cm)
Net Weight, lbs 268
Net Weight, kgs 121.56
Adjustable Shelf Yes
