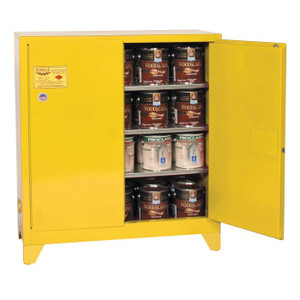

Eagle 40 Gallon,Tower™ Paint and Ink Safety Cabinets
- Manual Close
- Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system
- Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load
- Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements
Product Summary:
- Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
- Constructed of 18-gauge steel
- Lead-free, high-gloss, baked-on powder finish
- Continuous piano hinges
- Ground connection
- Four adjustable 4 in (10.2 cm) legs help provide easy cleaning under cabinet and moving with a forklift or pallet jack
- Trilingual warning labels
- 2 in (5.1 cm) raised leakproof sill
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Two 2 in (5.1 cm) internal vents with fire baffle and cap
- Flush mounted door handle with key lock
- Three-point stainless steel bullet latching system
- 3 in (7.6 cm) centers for shelf brackets
- Self-latching doors
- Door closings: Manual Close (180° opening)
Specifications
| Model No | YPI32XLEGS |
|---|---|
| Color | Yellow |
| Material Specifications | 18-Gauge Steel |
| FM Approval | Yes |
| OSHA Compliance | Yes |
| Complies with NFPA Code 30 | Yes |
| Door Style | Manual Close |
| UPC | 048441691210 |
| Dimensions, Exterior | 43W x 18Dx 48H |
| Dimensions, Interior | 39.5" W x 14.56" D x 39.5" H (100.3 x 37 x 100.3 cm) |
| Number of Doors | 2 |
| Number of Shelves | 3 |
| Uniform Fire Code | No |
| Lock | Yes |
| Gallon Capacity | 40 |
| Liter Capacity | 151.42 |
| Fork Pockets | Yes |
| Replacement Shelf Model No. | 29937 |
| Pallet Quantity | 1 |
| Shelf Depth | 14" (35.6 cm) |
| Net Weight, lbs | 215 |
| Net Weight, kgs | 97.52 |
| Adjustable Shelf | Yes |
