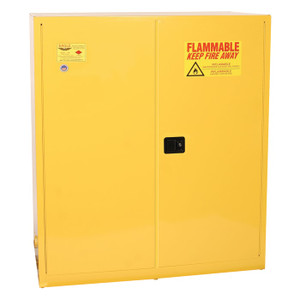

EAGLE 110 Gallon, 2 Drum, Vertical, 1 Shelf, 2 Door, Self Close, Safety Cabinet, Yellow - 5510X

EAGLE
(No reviews yet) Write a Review
SKU:
5510X
UPC:
48441692217
$3,900.00
Adding to cart… The item has been added
Eagle 110 Gallon, self-closing, Vertical Drum Storage Safety Cabinet, can safely contain (2) 55-gallon drums of flammable liquids. The cabinet features a convenient half shelf for additional storage space for accessories or containers and drum supports to keep drums elevated off cabinet sump. Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Product Summary:

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2 in (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2 in (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3 in (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • Door closings: Self-Closing (135° opening)
  • Concealed self-close mechanism provides obstruction-free access to top shelf space
  • Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom

Specifications


More Information
Model No 5510X
Color Yellow
Material Specifications 18-Gauge Steel
FM Approval Yes
OSHA Compliance Yes
Complies with NFPA Code 30 Yes
Door Style Self-close
UPC 048441692217
Dimensions, Exterior 59W x 34Dx 65H
Dimensions, Interior 56" W x 30.34" D x 60.5" H (142.2 x 77.1 x 153.7 cm)
Number of Doors 2
Number of Shelves 1
Uniform Fire Code Yes
Lock Yes
Gallon Capacity 110
Liter Capacity 416.4
Replacement Shelf Model No. 29947
Pallet Quantity 1
Shelf Depth 29" (73.7 cm)
Net Weight, lbs 552
Net Weight, kgs 250.38
Adjustable Shelf Yes
