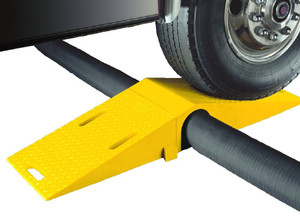

Diamondback® single tunnel systems provide protection for valuable cable and hose lines while ensuring a safe method of passage for vehicles. High-density, all-weather urethane construction protects from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The single tunnel systems feature a high load-bearing capacity, modular, interlocking design, and diamond-plate tread surface for increased traction with hoses and cables up to 3.5" in diameter.
Product Summary:
- Polyurethane Construction is Abrasion, Impact and Weather-Resistant with High Load-Bearing Capacity
- Diamond-Plate Tread Surface Increases Traction
- Yellow Caution Color for High Visibility
- Modular Interlocking Design is Lightweight, Easy to Ttransport, Setup, Disassemble, and Store
- Built-In Hand Holds Allow for Handling with Ease and Double as Attachment Points for Mounting Brackets
- WARNING: Vehicles Crossing Bridge System Must Have Clearance of Greater Than Bridge Height
- WARNING: Hose Bridges are for Rubber-Tired Vehicles Only (Not for Equipment with Metal Tracks)
Specifications
| Model No | UHB3035 |
|---|---|
| UPC | 812958005385 |
| Quantity Included | 1 |
| Pallet Quantity | 40 |
| Load Capacity Per Axle | 19800 lbs |
| Load Capacity Per Tire | 9900 |
| length (Inches) | 27 |
| Width (Inches) | 17.63 |
| Height (Inches) | 4.5 |
| Max Cable Outside Diameter (Inches) | 3.5 in. |
| Number of Channels | 1-Channel |
| Bridge Length (Inches) | 38.25 |
| Bridge Width (Inches) | 16 |
| Bridge Height (Inches) | 4.63 |
| Tunnel Diameter | 3.5 |
| Tunnel Top Length (Inches) | 6.5 |
| Tunnel Base Length (Inches) | 14.38 |
| Ramp Top Length (Inches) | 16 |
| Ramp Base Length (Inches) | 12 |
| System Weight | 40 |
