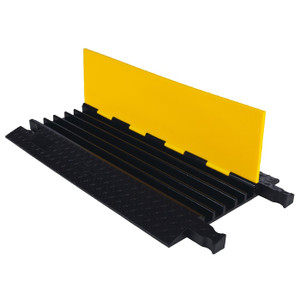

Yellow Jacket® 5-channel cable protector with hinged lid provides a safe crossing in high volume traffic areas while protecting valuable electrical cables and hose lines from damage. The heavy-duty modular interlocking design is ideal for use in industrial, commercial, and public applications.
Product Summary:
- The "Original" cable protector
- Protects cables and hoses up to 1.0" outside dia.
- Dog Bone Connectors to extend to any desired length
- Thick lid and base allow for high volume of traffic
- Hinged lid for easy cable placement
- Modular interlocking design
- Ideal for use in industrial, commercial, and public applications
Specifications
| Model No | YJ5-125-Y/B |
|---|---|
| UPC | 812958009031 |
| Color | Yellow Lid / Black Base |
| Quantity Included | 1 |
| Pallet Quantity | 36 |
| Load Capacity Per Axle | 32600 lbs |
| length (Inches) | 36 |
| Width (Inches) | 20 |
| Height (Inches) | 2 |
| Max Cable Outside Diameter (Inches) | 1.25 in. |
| Number of Channels | 5-Channels |
| Connector Type | Dog Bone Connector |
| Channel Width | 1.375 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
Yellow Jacket® Cable Protector Brochure (1.67 MB)
